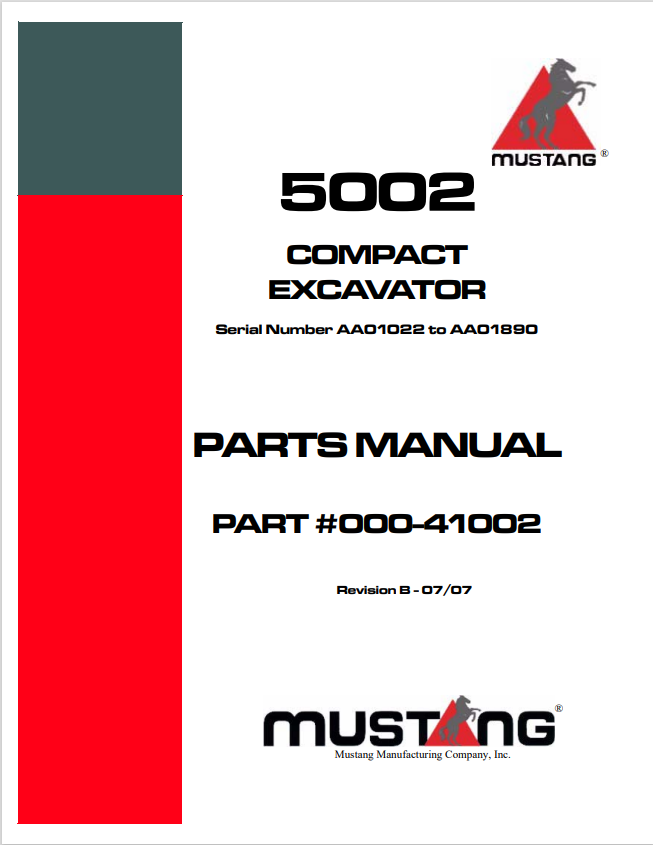

DOWNLOAD MUSTANG 5002 COMPACT EXCAVATOR PARTS MANUAL 000-41002- PDF

Comprehensive parts manual for the Mustang 5002 compact excavator (Model 000-41002). This PDF guide provides detailed diagrams, part numbers, and assembly information essential for maintenance, repairs, and component replacement. Ideal for operators, technicians, and equipment managers who need accurate reference documentation. Covers all major systems and subsystems to ensure proper identification and ordering of genuine parts. Digital format allows easy access and searchability on any device.

PART NUMBER - 000-41002
Revision B - 07/07

TOTAL PAGE: 130
FILE SIZE: 3.60 MB
LANGUAGE: ENGLISH

PART NUMBER - 000-41002

MODEL COVERED :
5002 COMPACT EXCAVATOR

CONTENTS :
Introduction
Table Of Contents
Decal Locations
Undercarriage, Rubber Track
Undercarriage, Steel Track Supporting Roller
Track Tensioner, Rubber Track
Track Tensioner, Rubber & Steel Tracks
Bottom Roller
Dozer Blade Chassis
Chassis Covers
Chassis Lubrication
Rear Plate
Counterweight.. Engine Hood
Valve Cover
Hose Cover
Hydraulic Tank Cover Boom
Dipper Arm
Connecting Link
Cab Mounting
Cab (Cont.)
Wiring Harness
Front Window
Cab Windows
Cab Sliding Window
Cab Door
Cab Isolation Mats
Heater
Operator's Seat
Diesel Engine
Engine Mounts
Cylinder Head
Cylinder Block
Seal Crankshaft
Oil Pan
Camshaft
Crankshaft & Pistons
Oil Lubrication System
Cooling System
Fuel Injection System
